Product Details:
Payment & Shipping Terms:
|

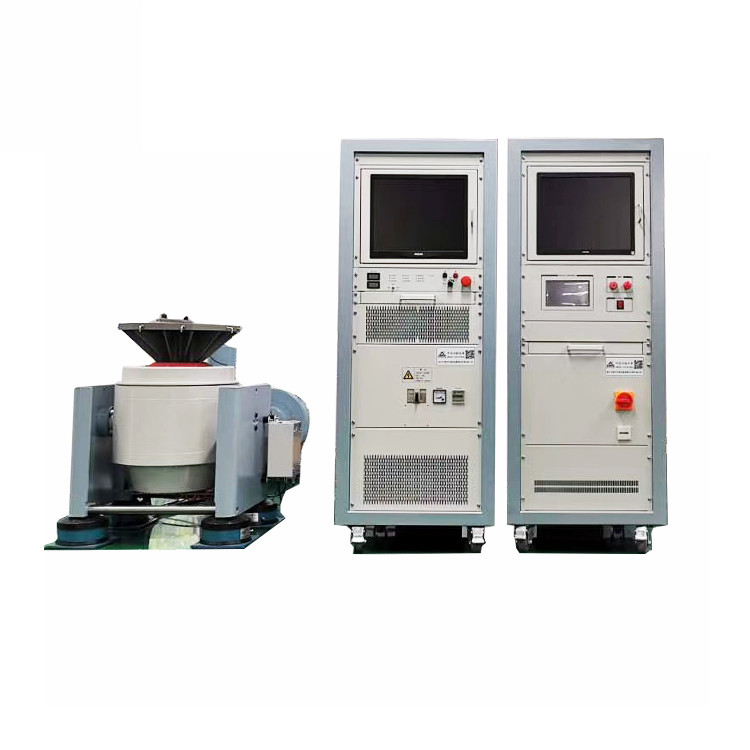

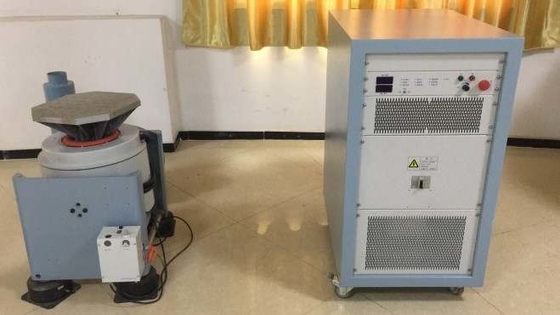

| Product Name: | Packing Electromagnetic Random Vibration Test Shaker ASTM D999 Standard | Certification: | CE / ISO |
|---|---|---|---|
| Model: | ZL-6031 | Brand: | ZL |
| Speed: | 1.8 M/s | Displacement: | 65mm |
| Frequency: | 3~3500HZ | Loading: | 500kg |
| Acceleration: | 100g | Armature: | 450mm |
| Test Standard: | ASTM D999 | ||
| Highlight: | Packing Random Vibration Test Shaker,Electromagnetic Random Vibration Test Shaker,ASTM D999 Random Vibration Test Shaker |
||
Performance characteristics of vibration table:
1. The carefully designed dynamic coil skeleton has a high first-order axial resonance frequency.
2. Dual magnetic circuit, low magnetic leakage, compact and reasonable structure.
3. The composite guiding mechanism of rocker arm rolling rod and imported linear bearing has high guiding stiffness and strong eccentric load capacity.
4. Ear shaft vibration isolation does not require a dedicated foundation and is easy to install and move.
5. The dynamic coil winding process ensures high reliability of the dynamic coil.
6. The new air duct design enhances the cooling effect.
7. A load-bearing airbag with high static stiffness and low dynamic stiffness enhances the load-bearing capacity of the vibration table and improves low-frequency performance.
Specification Model List:
Temperature and humidity range: (Details are subject to temperature and humidity control chart)
G:-20～150℃ ；45%～98%
Z:-40～150℃ ；45%～98%
D:-70～150℃ ；45%～98%
2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH
3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH
4. Test machine size: (can be customized)
| Inner Box Size(W×H×D) | Carton Size(W×H×D) |
| 40×50×40cm | 98×143×93cm |
| 50×60×40cm | 153×108×93cm |
| 50×60×50cm | 107×147×111cm |
| 50×75×60cm | 107×162×121cm |
| 60×85×60cm | 110×178×108cm |
| 60×85×80cm | 117×172×141cm |
| 100×100×80cm | 157×187×141cm |
| 100×96×100cm | 193×158×149cm |
| 100×100×100cm | 193×158×153cm |
Electromagnetic vibration table specifications:
| Large exciting force (N) | Frequency range (Hz) | Large displacement (mm) | Large Attachment (KG) | Working table straight (mm) |
| 980 | 5～4500 | 25 | 70 | 150 |
| 1500 | 5～4500 | 25 | 70 | 150 |
| 2000 | 2～3000 | 40 | 140 | 230 |
| 3000 | 5～4000 | 25 | 120 | 150 |
| 3000 | 3～3000 | 40 | 140 | 230 |
| 6000 | 5～3000 | 25 | 200 | 200 |
| 6000 | 2～2000 | 51 | 300 | 230 |
| 10000 | 5～3000 | 51 | 150 | 240 |
| 20000 | 5～3000 | 51 | 300 | 320 |

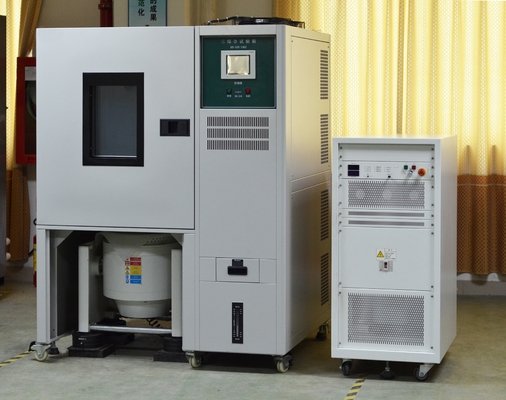

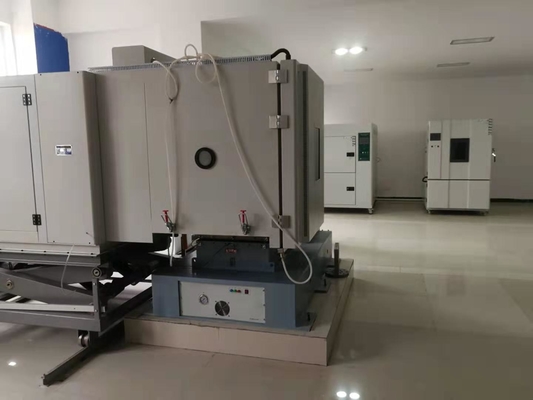

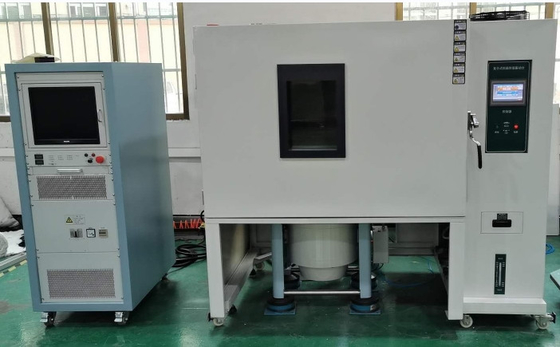

Temperature and humidity vibration comprehensive test box (vertical + horizontal)
constitute:
The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.
