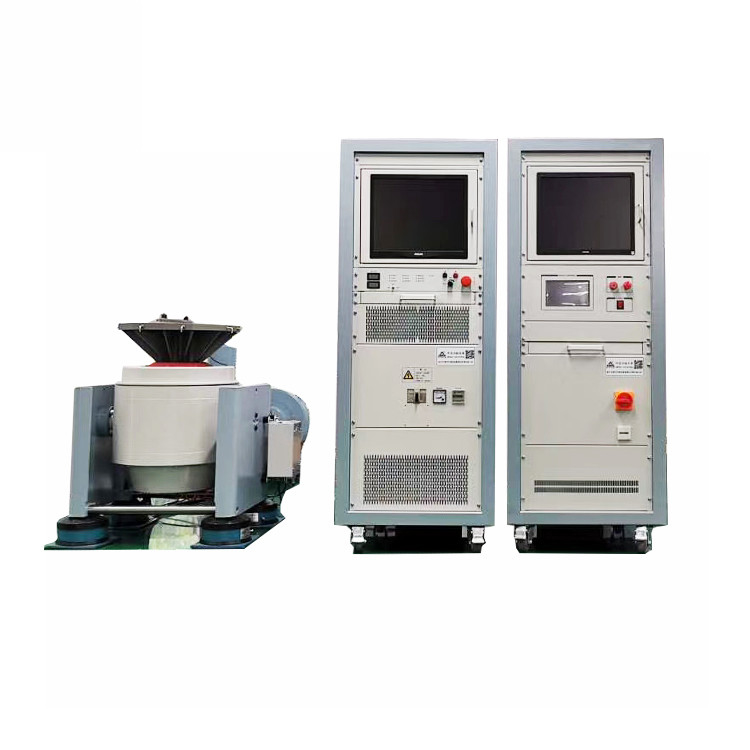

| Product Name: | 3 Axis Shaker Table Vibration Test System IEC62133 Battery Test Equipment | Certification: | CE / ISO |
|---|---|---|---|
| Model: | ZL-6031 | Brand: | ZL |
| Payload: | 100 Kg | Power Amplifier: | 3-phase AC 380V 50Hz |
| Cooling Method: | Air Cooling | Price: | Negotiable |
| MOQ: | 1 Set | ||
| Highlight: | IEC62133 Shaker Table,Vibration Test System Shaker Table,3 Axis Shaker Table |
||

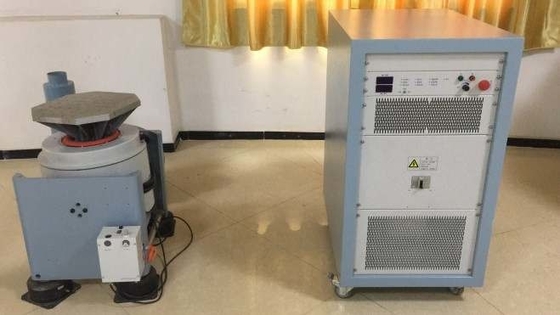

Product design of electromagnetic vertical vibration table:
Environmentally friendly design, low noise, production line equipment.
Long term operation without drifting, no need to install foot screws, protecting the floor.
The panel made of magnesium alloy material can completely isolate magnetic field interference and effectively prevent magnetization of the measured object
Performance characteristics of electromagnetic vertical vibration table:
High strength skeleton free dynamic coil design, capable of high-frequency vibration up to 4000Hz. (Optional)
The embedded amplitude prediction program and amplitude modulation are easy to synchronously excite four points, and the table vibration is uniform.
Frequency control, balance.
Add anti-interference circuits to solve the interference of strong electromagnetic fields on control circuits.
Specification Model List:
Temperature and humidity range: (Details are subject to temperature and humidity control chart)
G:-20～150℃ ；45%～98%
Z:-40～150℃ ；45%～98%
D:-70～150℃ ；45%～98%
2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH
3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH
4. Test machine size: (can be customized)
| Inner Box Size(W×H×D) | Carton Size(W×H×D) |
| 40×50×40cm | 98×143×93cm |
| 50×60×40cm | 153×108×93cm |
| 50×60×50cm | 107×147×111cm |
| 50×75×60cm | 107×162×121cm |
| 60×85×60cm | 110×178×108cm |
| 60×85×80cm | 117×172×141cm |
| 100×100×80cm | 157×187×141cm |
| 100×96×100cm | 193×158×149cm |
| 100×100×100cm | 193×158×153cm |
Electromagnetic vibration table specifications:
| Large exciting force (N) | Frequency range (Hz) | Large displacement (mm) | Large Attachment (KG) | Working table straight (mm) |
| 980 | 5～4500 | 25 | 70 | 150 |
| 1500 | 5～4500 | 25 | 70 | 150 |
| 2000 | 2～3000 | 40 | 140 | 230 |
| 3000 | 5～4000 | 25 | 120 | 150 |
| 3000 | 3～3000 | 40 | 140 | 230 |
| 6000 | 5～3000 | 25 | 200 | 200 |
| 6000 | 2～2000 | 51 | 300 | 230 |
| 10000 | 5～3000 | 51 | 150 | 240 |
| 20000 | 5～3000 | 51 | 300 | 320 |

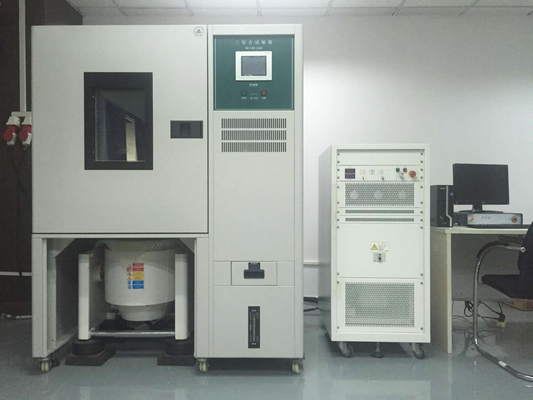

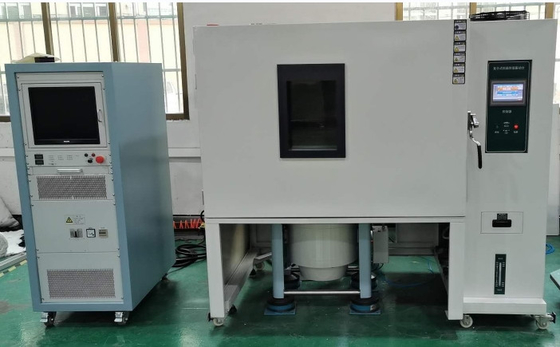

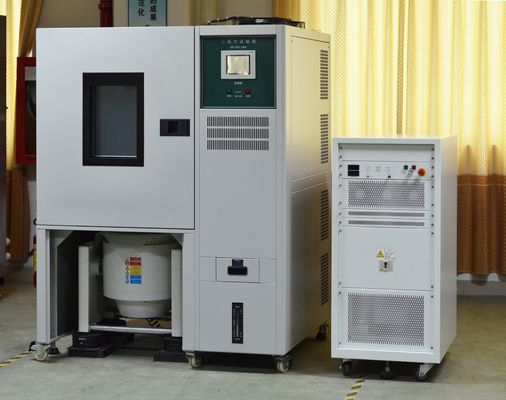

Temperature and humidity vibration comprehensive test box (vertical + horizontal)
constitute:
The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.
