| Product Name: | 3-phase Electrodynamic Vibration Shaker For Electric Components Testing | Certification: | CE / ISO |
|---|---|---|---|
| Model: | ZL-6031 | Brand: | ZL |
| Max. Velocity: | 200 Cm/s | Maximum Displacement: | 50.8mmp-p |
| Frequency Range: | 2-3000 Hz | Payload: | 200 Kg |
| Power Amplifier: | 3-phase AC 380V 50Hz | Rated Force: | 600kgf (6KN) |
| Highlight: | 3 Phase Vibration Shaker,Electric Components Vibration Shaker,Electrodynamic Vibration Shaker |
||
Electromagnetic vertical vibration table is suitable for industries such as aviation, communication, electronics, automotive, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength testing. The product has a wide range of applications, wide applicability, significant test results, and reliability.
Performance characteristics of electromagnetic vertical vibration table:
1. Imported microcomputer LCD color touch control system with human-machine interface dialogue.
2. The electromagnetic vibration table adopts programmable technology, which can set the program and the number of cycles can be set arbitrarily. Multiple frequency scans can work simultaneously.
3. The electromagnetic vibration table has single point, segment, and multi segment timing and countdown functions.
4. Stepless adjustment of amplitude to meet various testing requirements in different industries.
5. The electromagnetic vibration table has a working time timer, which is convenient to use. Real time synchronized display of control parameters without the need for manual intervention.
6. The infinitely adjustable amplitude, fixed frequency, and sweep frequency operation functions are suitable for various testing requirements in different industries.
7. Imported frequency controller, digital control and display frequency, PID regulation function.
8. It can display the frequency change curve in real time, with a built-in USB communication interface, and can directly connect to a USB flash drive to record data and print test results.
9. Work independently vertically and horizontally, using electronic switch conversion to improve work efficiency.
Specification Model List:
Temperature and humidity range: (Details are subject to temperature and humidity control chart)
G:-20～150℃ ；45%～98%
Z:-40～150℃ ；45%～98%
D:-70～150℃ ；45%～98%
2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH
3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH
4. Test machine size: (can be customized)
| Inner Box Size(W×H×D) | Carton Size(W×H×D) |
| 40×50×40cm | 98×143×93cm |
| 50×60×40cm | 153×108×93cm |
| 50×60×50cm | 107×147×111cm |
| 50×75×60cm | 107×162×121cm |
| 60×85×60cm | 110×178×108cm |
| 60×85×80cm | 117×172×141cm |
| 100×100×80cm | 157×187×141cm |
| 100×96×100cm | 193×158×149cm |
| 100×100×100cm | 193×158×153cm |
Electromagnetic vibration table specifications:
| Large exciting force (N) | Frequency range (Hz) | Large displacement (mm) | Large Attachment (KG) | Working table straight (mm) |
| 980 | 5～4500 | 25 | 70 | 150 |
| 1500 | 5～4500 | 25 | 70 | 150 |
| 2000 | 2～3000 | 40 | 140 | 230 |
| 3000 | 5～4000 | 25 | 120 | 150 |
| 3000 | 3～3000 | 40 | 140 | 230 |
| 6000 | 5～3000 | 25 | 200 | 200 |
| 6000 | 2～2000 | 51 | 300 | 230 |
| 10000 | 5～3000 | 51 | 150 | 240 |
| 20000 | 5～3000 | 51 | 300 | 320 |

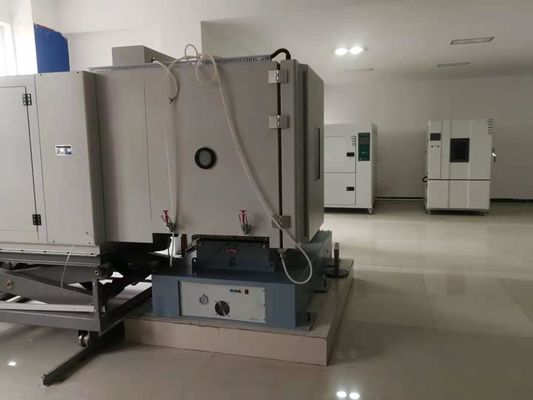

Temperature and humidity vibration comprehensive test box (vertical + horizontal)
constitute:
The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.
